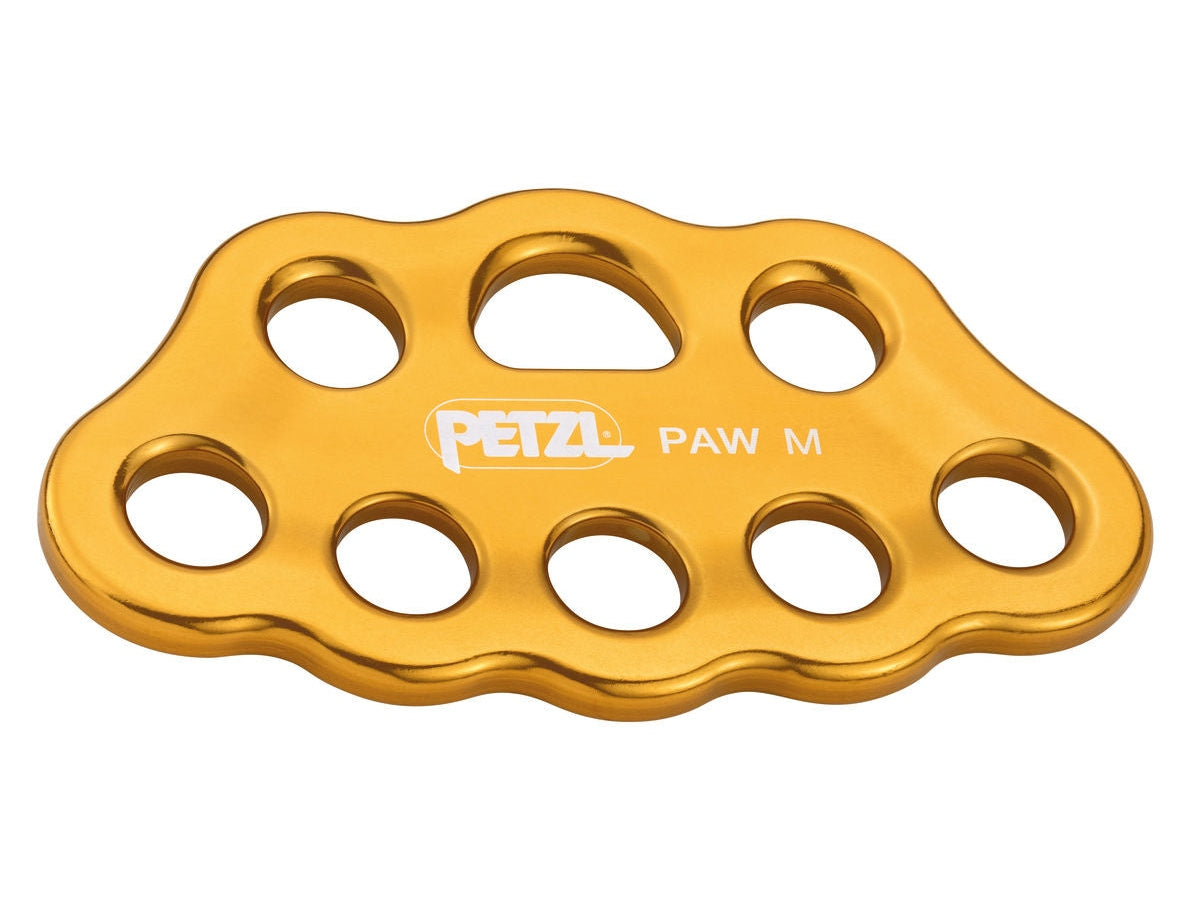

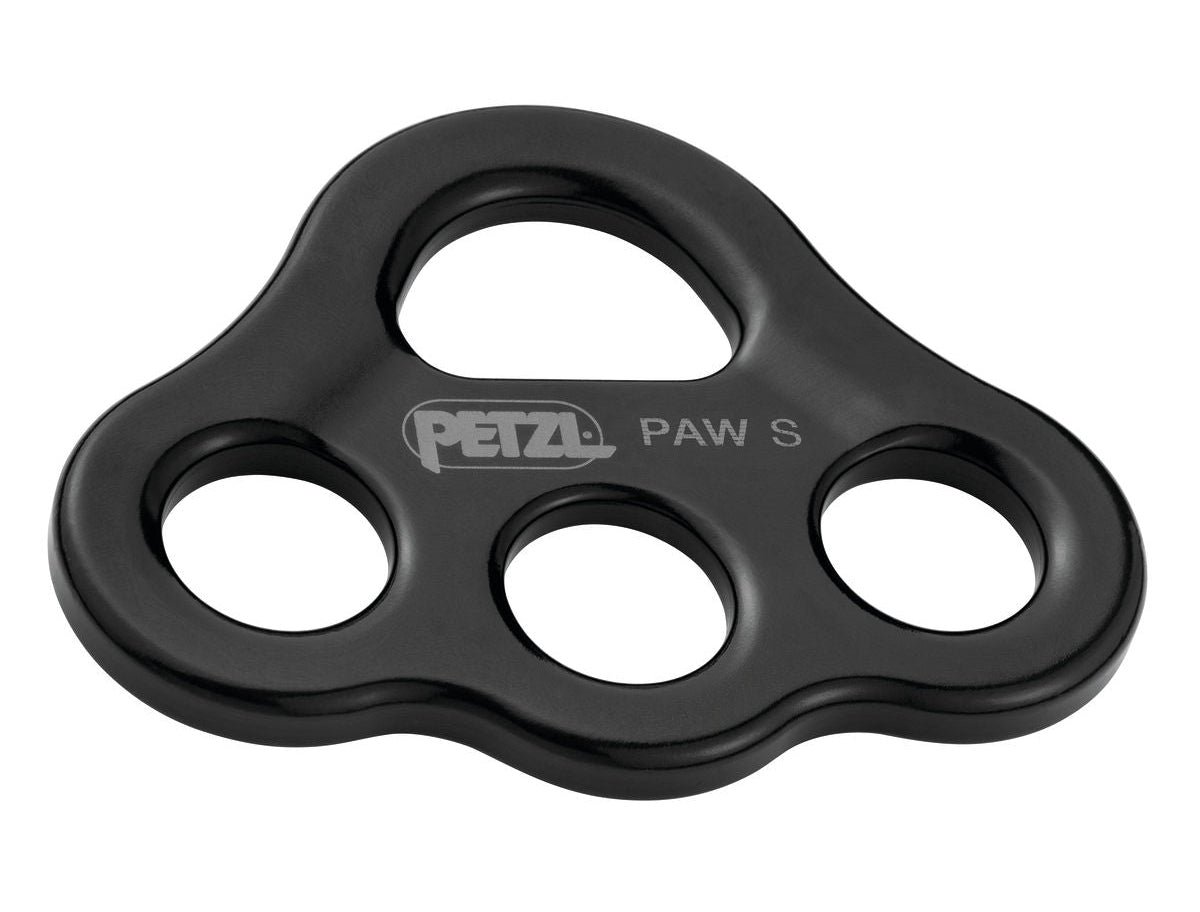

PETZL PAW force distribution plate

PETZL PAW force distribution plate

• This multi-anchor system is specially designed for organizing workstations and setting up multi-anchor systems to meet the needs of multiple users, with a stable structure and easy operation.

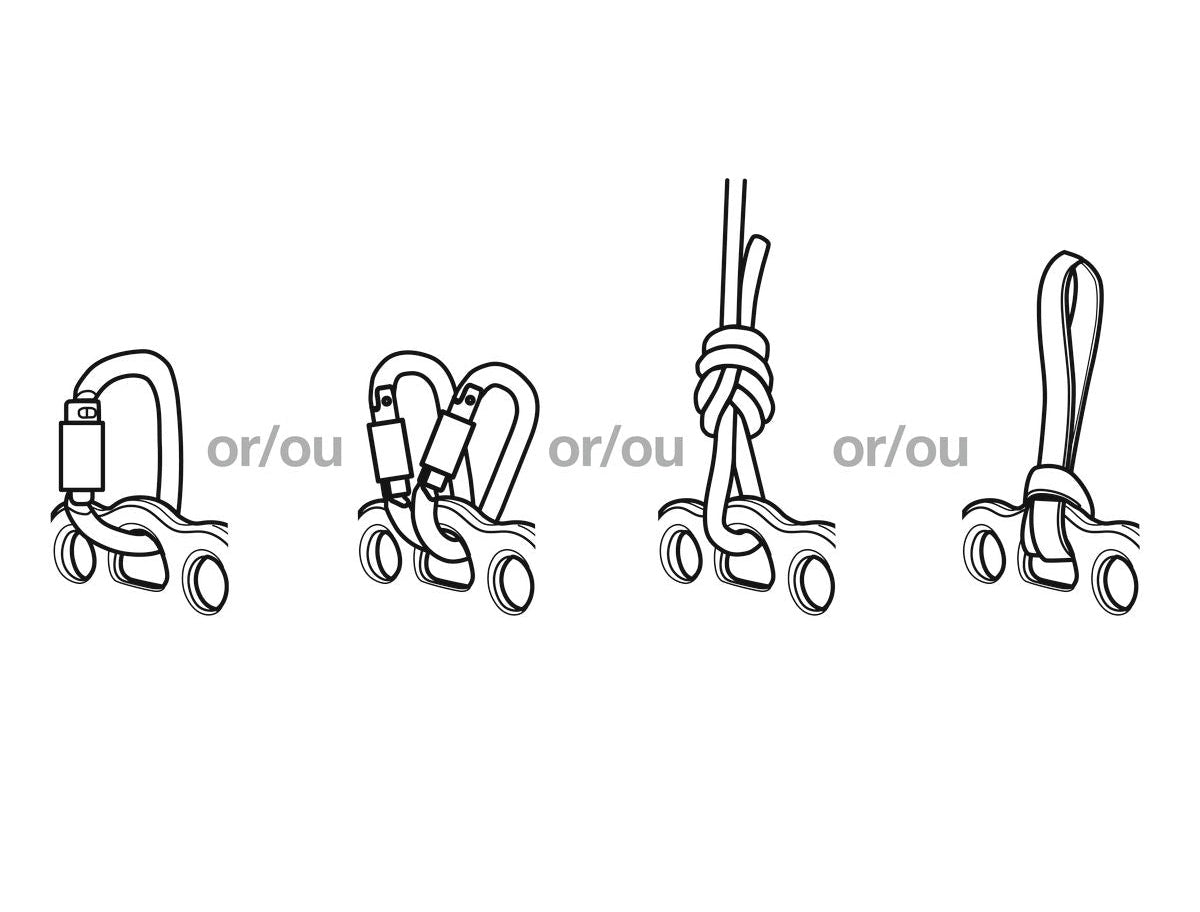

• Multi-purpose connection hole design : The large 19mm hole allows the locking sleeve of most carabiners to pass through, allowing the carabiner to rotate easily, enhancing flexibility and safety. At the same time, these holes also support the direct passage of ropes or slings , making system setup easier and faster.
• Reinforced main connection hole : The main connection hole can accommodate up to three carabiners at the same time, allowing you to flexibly set up multi-point connections to ensure system stability, plus the odd-numbered connection hole design ensures that the entire system can be centered and balanced, allowing each The hanging points are safe and reliable.
• Multi-user setup : Supports up to three users to connect at the same time, whether it is team work or complex multi-anchor system setup, it can be easily handled.
• High-strength material : The system is made of forged aluminum. This material has an excellent strength-to-weight ratio and can provide extremely high load-bearing capacity without adding too much weight. It is especially suitable for operating environments that require long-term carrying or frequent use. .

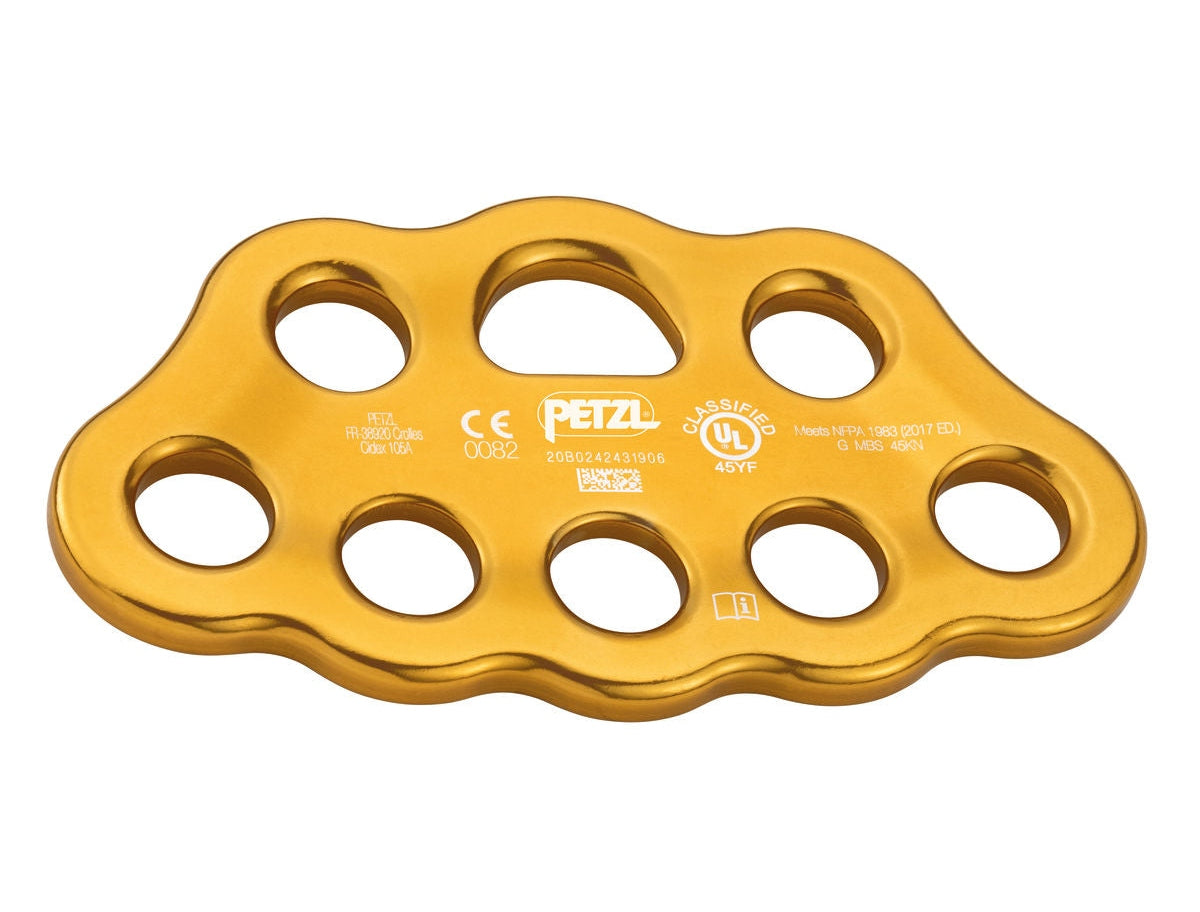

• Durable Marking : The recessed area design in the center of the board makes the marking more durable, and the marking will remain clear and legible whether it is used for a long time in an outdoor environment or after repeated wear and tear.

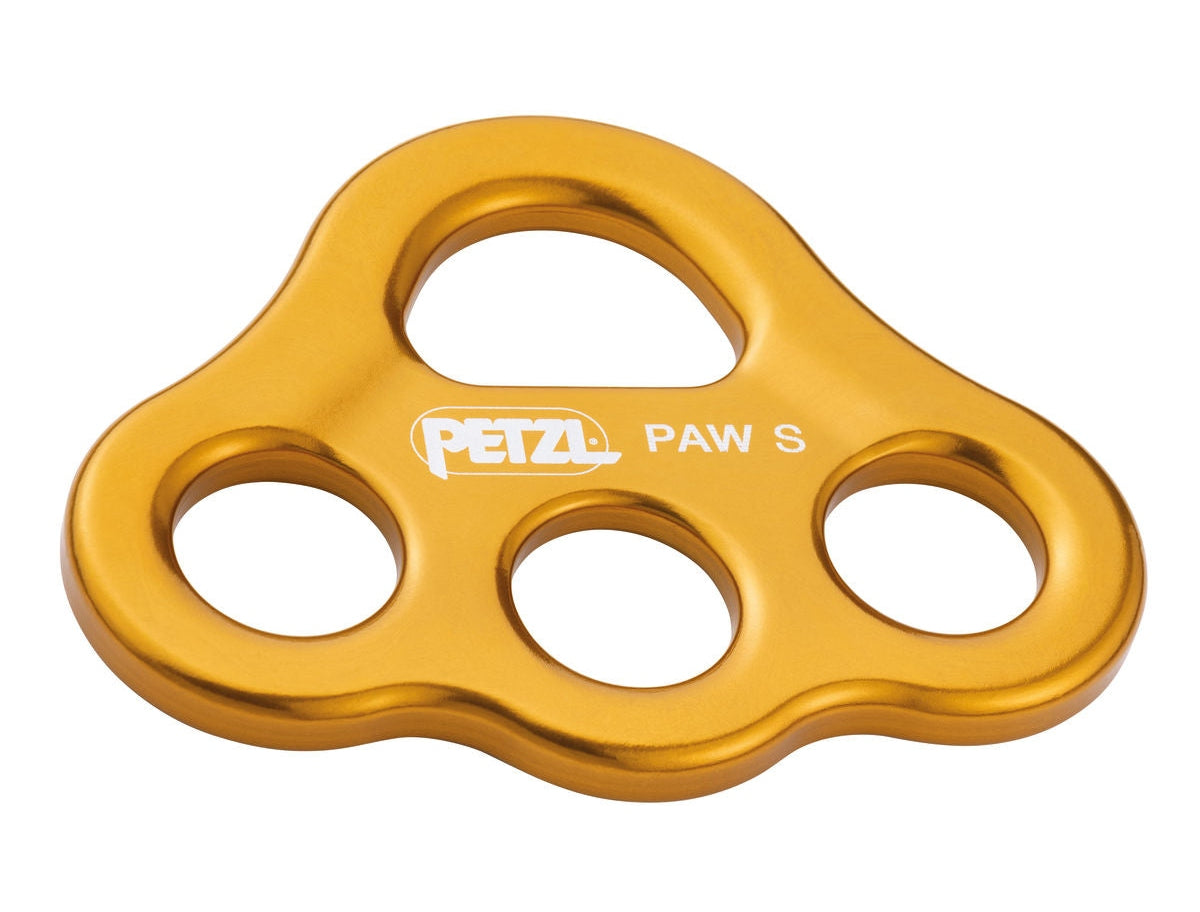

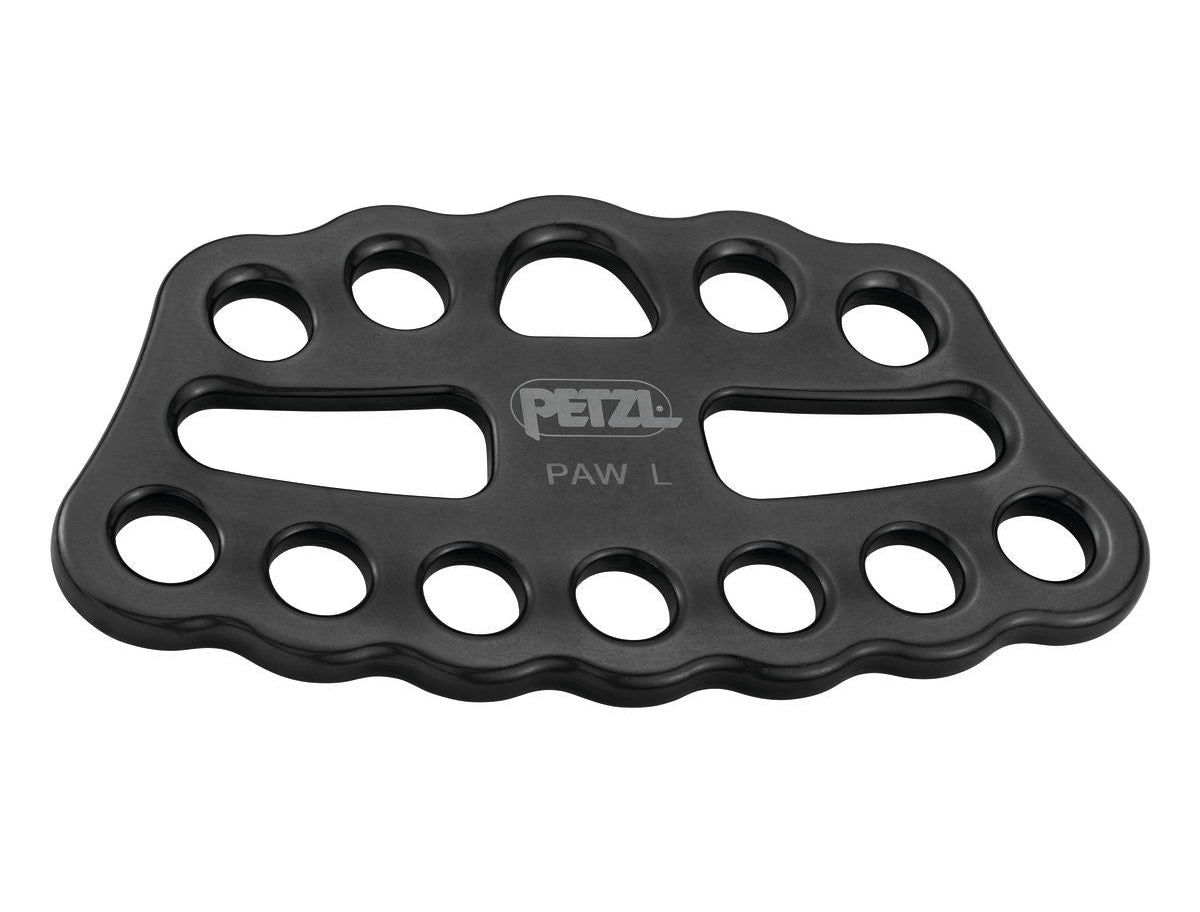

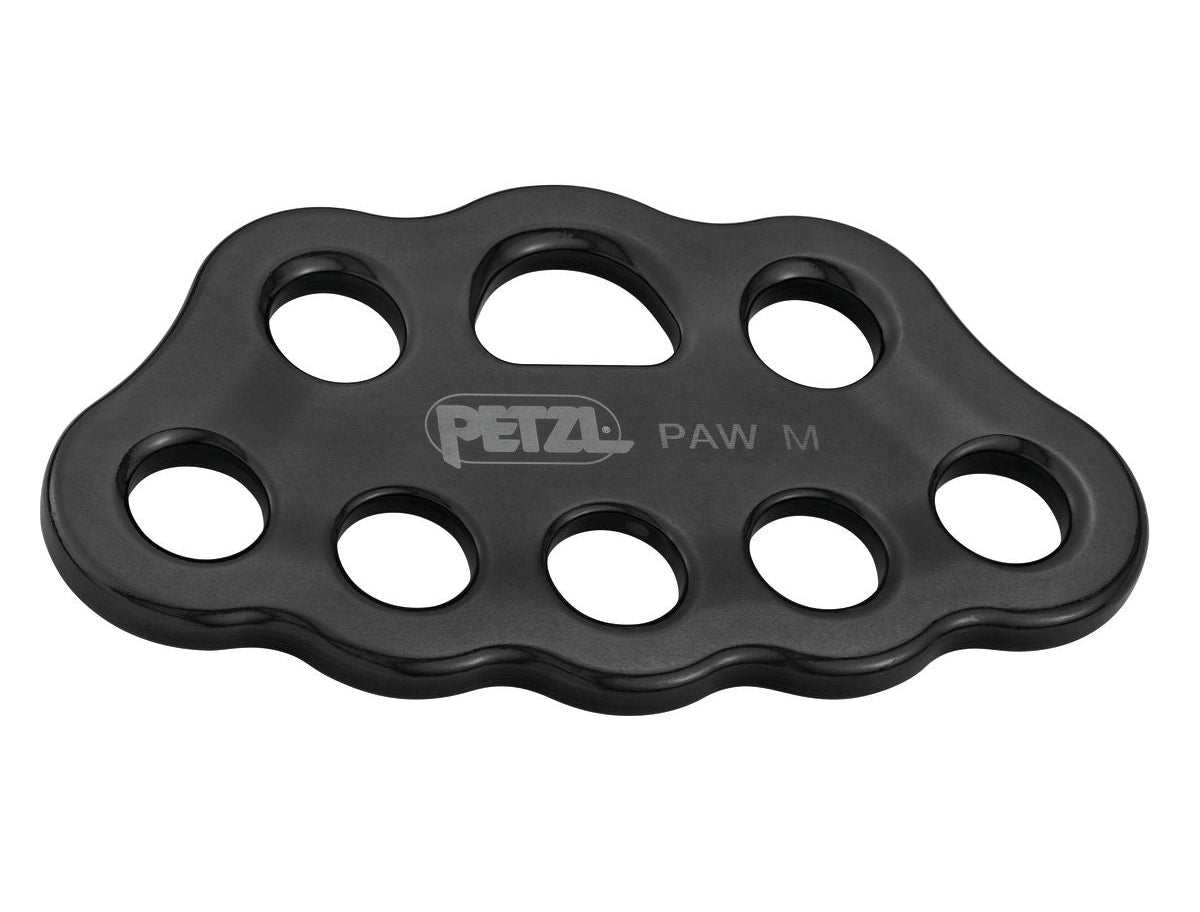

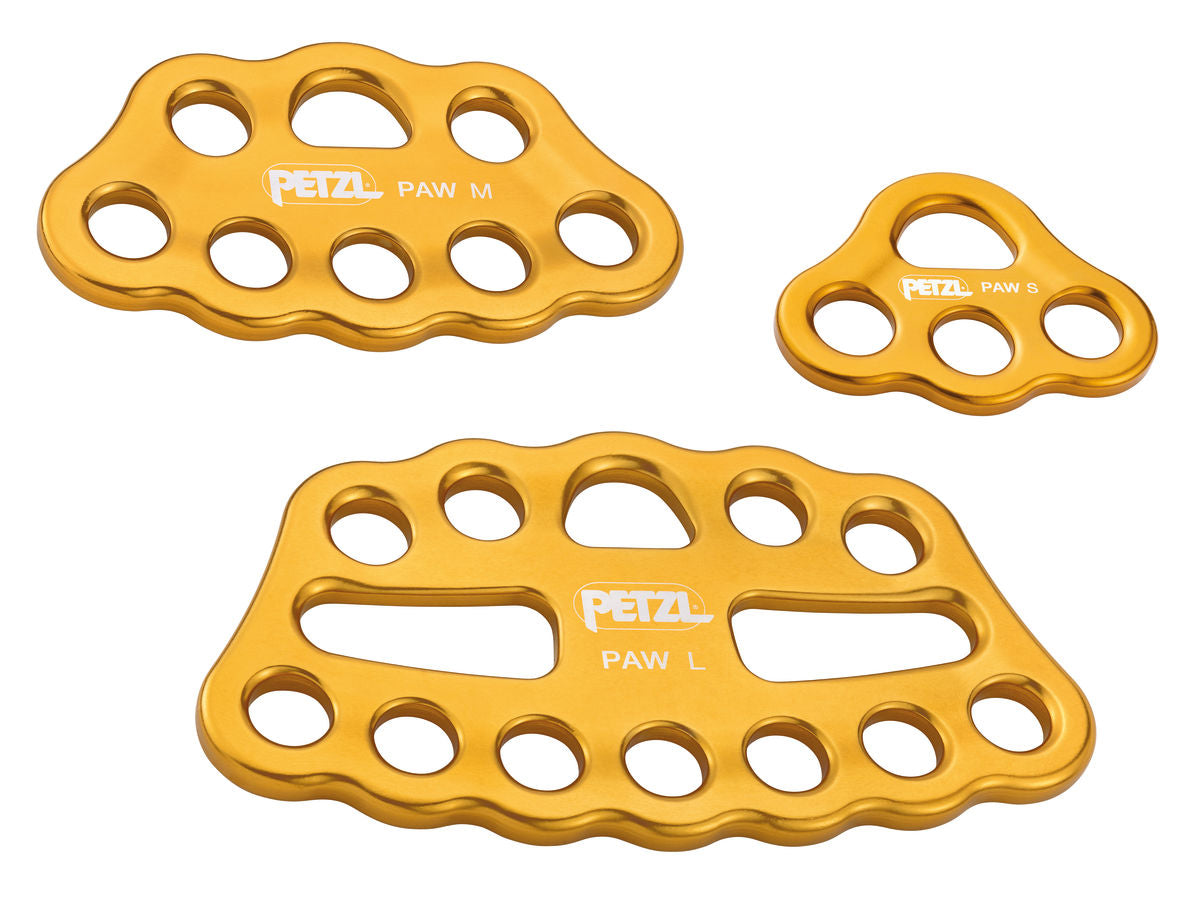

• Available in three different sizes as well as a black version, you have the flexibility to choose the right system specifications according to your needs.

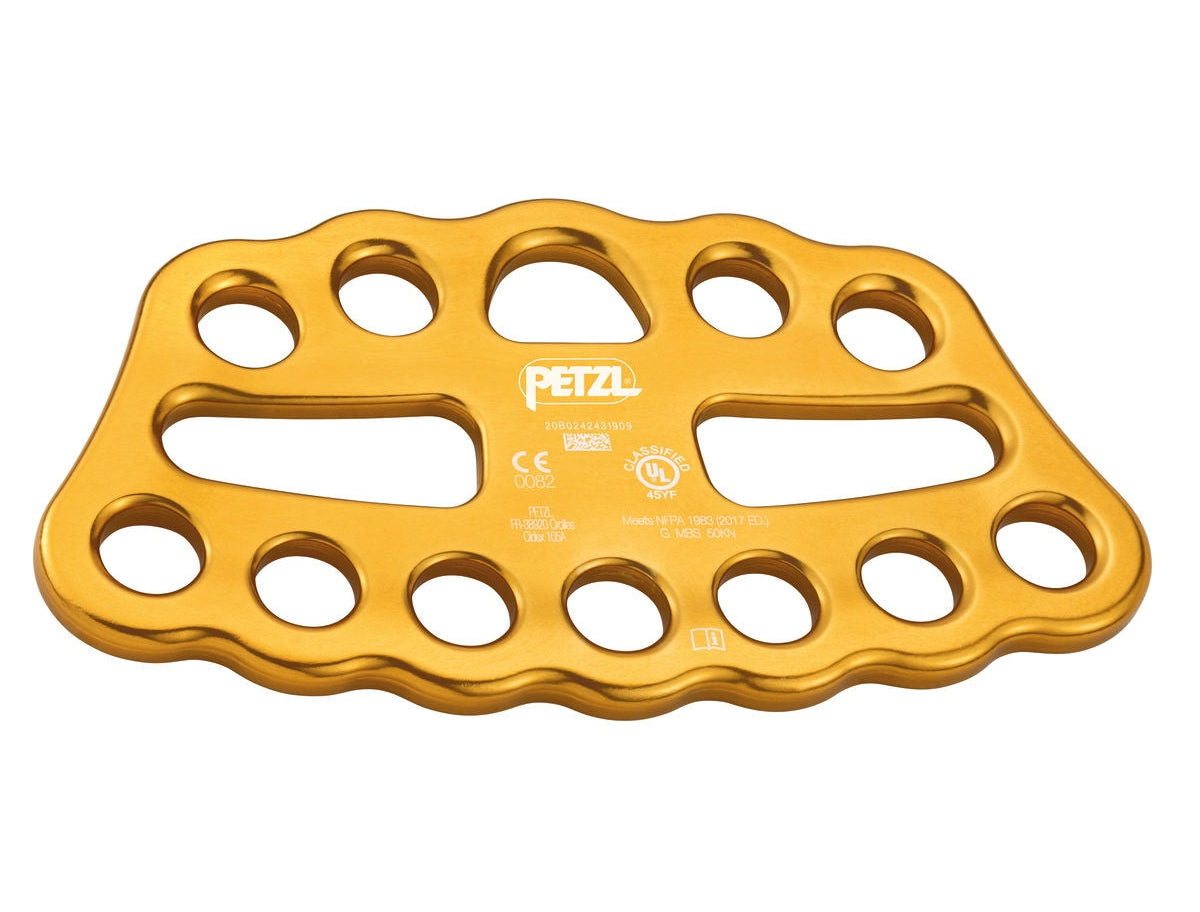

• The size L version is equipped with two wide auxiliary connection holes, which are fully compatible with CONNEXION FIXE and CONNEXION VARIO anchor straps, further enhancing the adaptability and stability of the system.
• Approvals: CE, NFPA 2500 General Purpose, UKCA .

In order to protect the rights and interests of consumers, this type of technical equipment is related to safety issues and no returns or exchanges will be accepted (except for defects in the product itself). Please confirm before ordering!

Specification

• PETZL PAW force distribution plate specifications
• Weight: S-60 g, M-180 g, L-350 g
• Breaking load (MBS): S-36 kN, M-45 kN, L-50 kN
• Material: aluminum
• Certifications: CE, NFPA 2500 General Purpose, UKCA

download

• PETZL PAW force distribution plate original manual
