SPECTRA land-based water generator Aquifer 4000 seawater desalination machine

The Aquifer 4000 is a high capacity desalination system capable of producing approximately 16,275 liters of potable water per day from any water source including fresh, brackish and sea water. This new highly portable system can be easily carried by two people. The Aquifer 4000 is an energy-efficient system that requires only a 3.5 kW generator to operate and is ruggedly designed to operate in the harshest environments. The system is ideal for disaster relief, humanitarian programs, and applications requiring a high degree of portability.

SPECTRA land-based water generator Aquifer 4000

• Efficient universal drinking water solution for a wide range of needs.
• Highly portable, two people can easily carry it.
• Energy-saving design, only requires a small generator to operate (generator not included).
• Rugged construction designed for harsh environments ensuring durability.
• Tool-free and quick assembly.
• Equipped with integrated control box.
• A foot pump is provided to assist in pumping water up to a height of 7 meters (25 feet).
• Capable of serving up to 5,400 people (based on the World Health Organization survival standard of 3 liters per day).
• Heavy-duty housing with military-grade shock and impact resistance.
• Made of advanced composite materials with excellent corrosion resistance.
• Fixed recovery system for easy operation and long life.
• Comes with 30 feet of retractable booster pump hose and 25 feet of water inlet pipe.
• With Spectra Watermakers' world-renowned customer service and technical support, the technical team can provide services through the Internet, phone, email and WhatsApp.

Specification

• SPECTRA land-based water generator Aquifer 4000 specifications

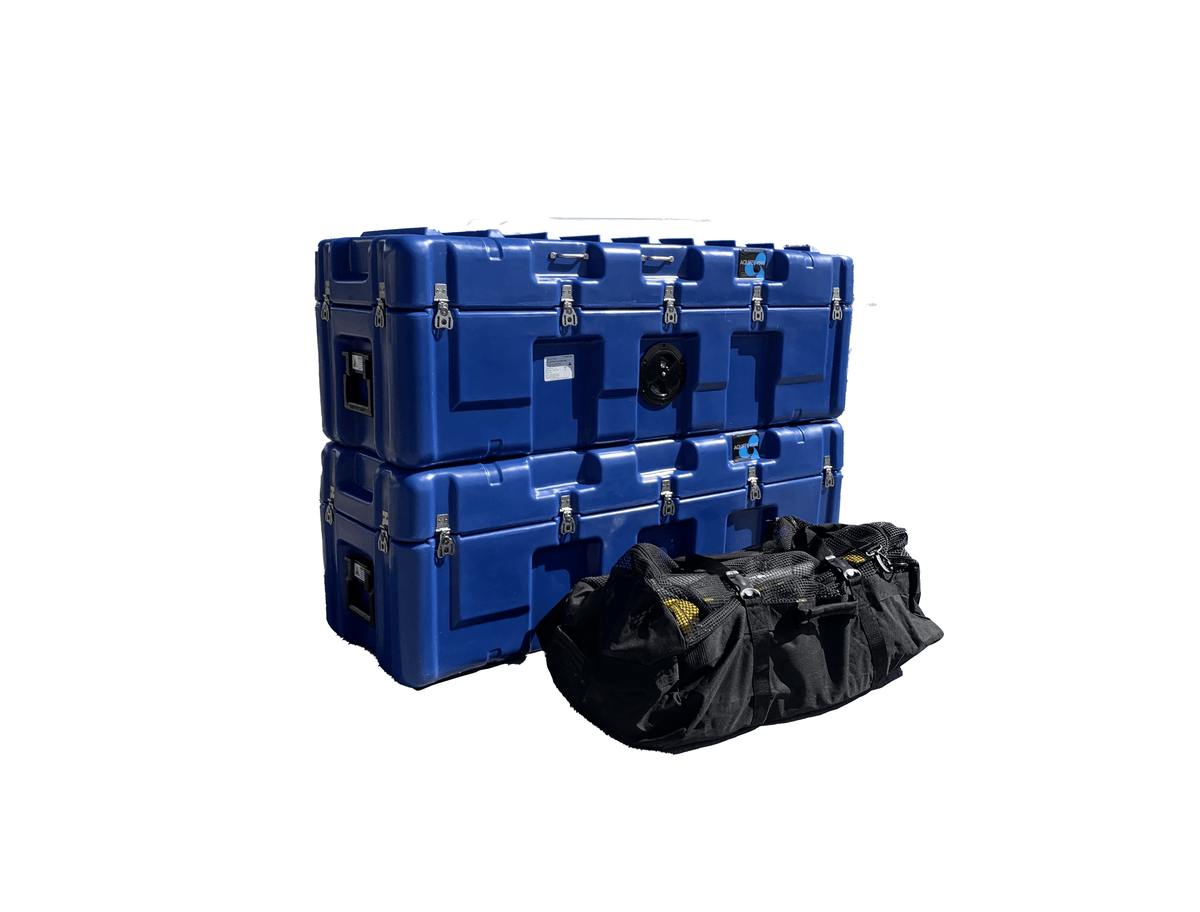

• Weight: Pump box A: 65 kg, membrane module box B: 90.7 kg, mesh bag: 18 kg
• Dimensions: Pump box A: 132 x 46 x 47 cm, membrane module box B: 132 x 46 x 47 cm, mesh bag: 51 x 91 x 25 cm
• Technology: Pearson Pump High Energy Efficiency Seawater Reverse Osmosis System
• Production per hour: 678 liters
• Daily production: 16,275 liters
• Recovery rate: Fixed 50%
• Water source: fresh water, salt water, sea water
• Voltage: 220VAC
• Power consumption: 2.6 kWh (seawater)
• Power consumption per liter: 3.83 W/L
• Desalination rate: 99.5%
• Temperature range: 2°C ~ 43°C

Related videos

SPECTRA land-based water generator Aquifer 4000 introduction

SPECTRA land-based water generator Aquifer 4000 setup and operation

download

• SPECTRA land-based water generator Aquifer 4000 original manual
• SPECTRA land-based water generator Aquifer 4000 pipeline diagram
