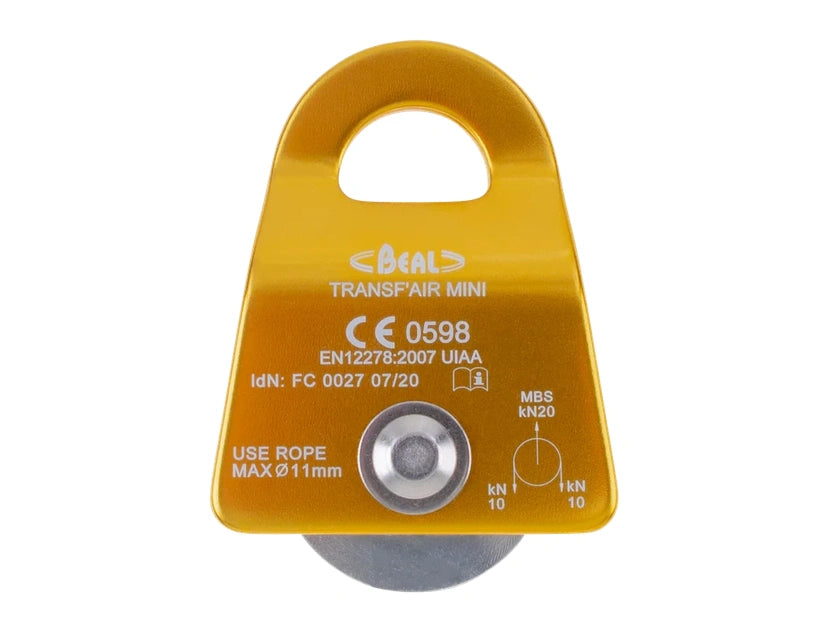

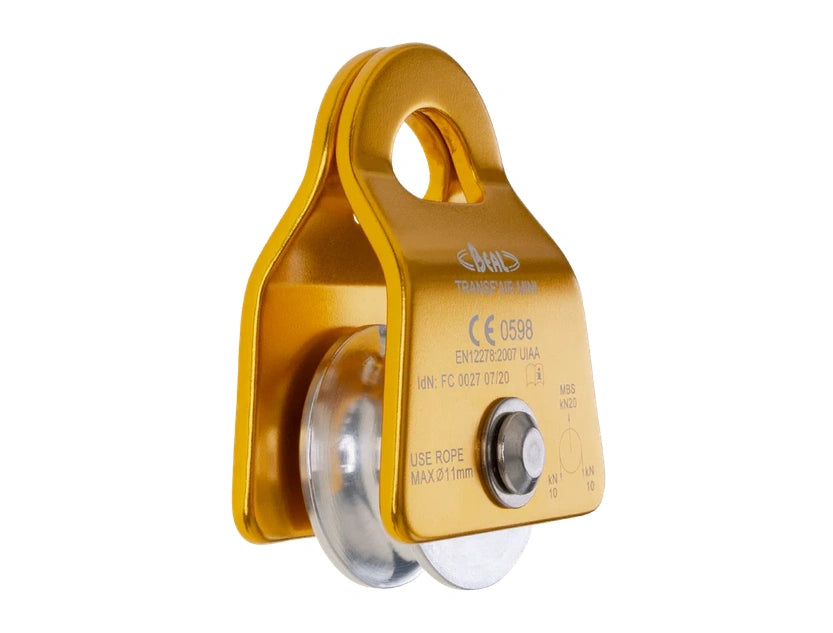

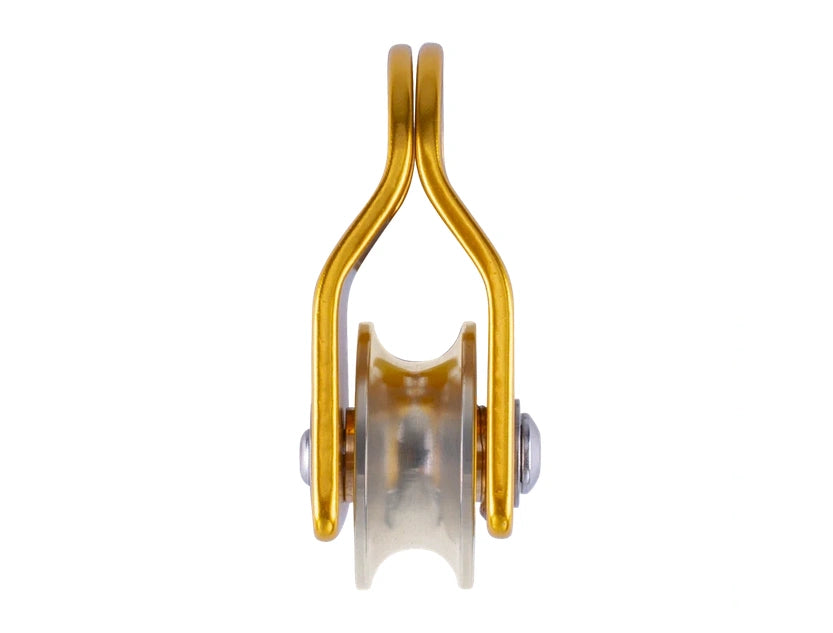

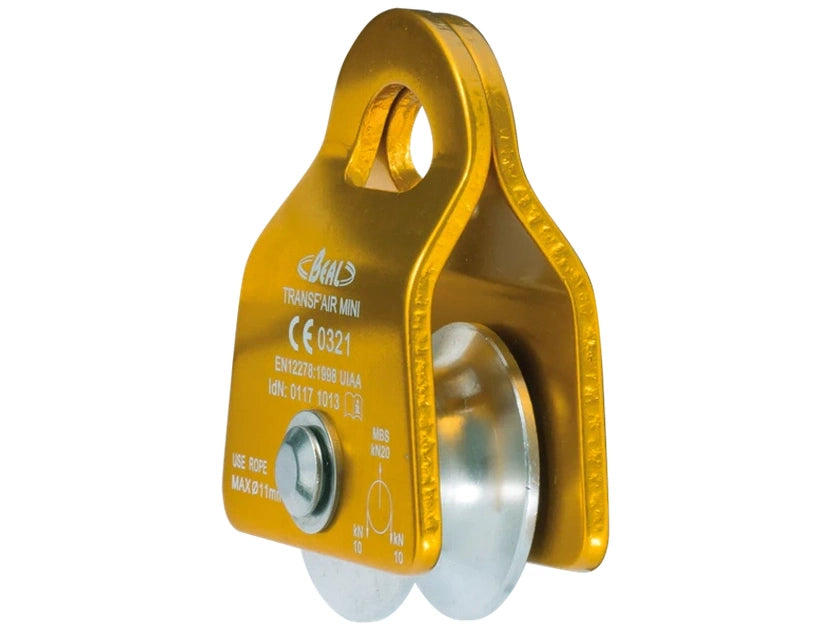

BEAL TRANSF'AIR MINI side swing pulley

BEAL TRANSF'AIR MINI side swing pulley

• This pulley is a small, lightweight, easy-to-carry pulley tool designed for outdoor or climbing activities that require flexible operation.

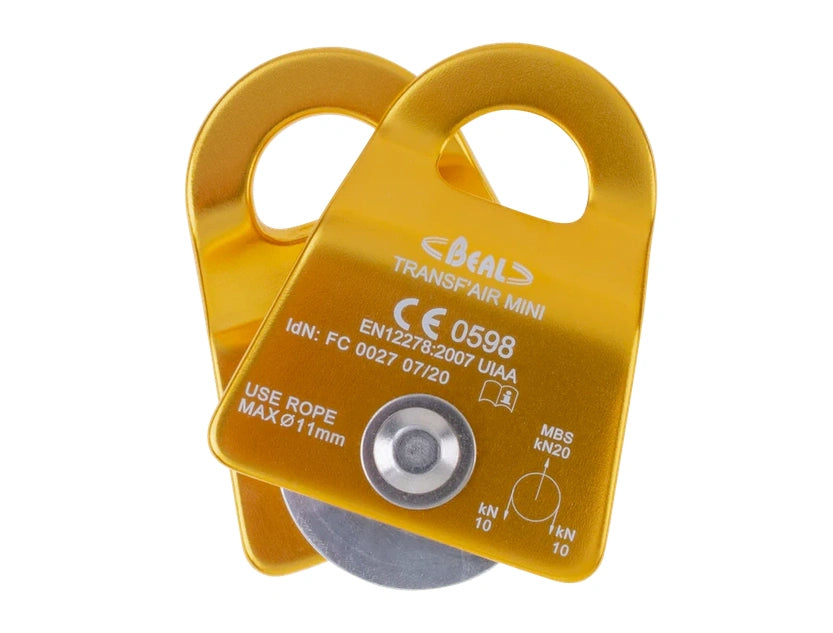

• Swing-type side plate design : The movable side plate design of this pulley allows it to be easily installed at any position on the rope without the need to pass the end of the rope through the pulley. It is especially suitable for environments such as crevasse rescue that require quick operations.
• Load-bearing steering and traction : The pulley is specially designed for load-bearing steering and traction operations, and is very suitable for use with mechanical brakes to improve operating efficiency and safety.
• Solid roller bearings : High-quality stainless steel roller bearings and washers are used to ensure that the pulley runs smoothly and efficiently, and can maintain reliable performance after long-term use.
• Compatibility and limitations : This pulley is suitable for O-type and D-type shackles, but please note that it cannot be used for steel cables to ensure that the equipment operates within the correct range.
• Product traceability : Each pulley has an independent IDN number, which facilitates user management and tracking of equipment and enhances the professionalism and reliability of the product.
• Certification: EN 12278:2007, CE . Pig nose

In order to protect the rights and interests of consumers, this type of technical equipment is related to safety issues and no returns or exchanges will be accepted (except for defects in the product itself). Please confirm before ordering!

Specification

• BEAL TRANSF'AIR MINI side swing pulley specifications
• Weight: 120g

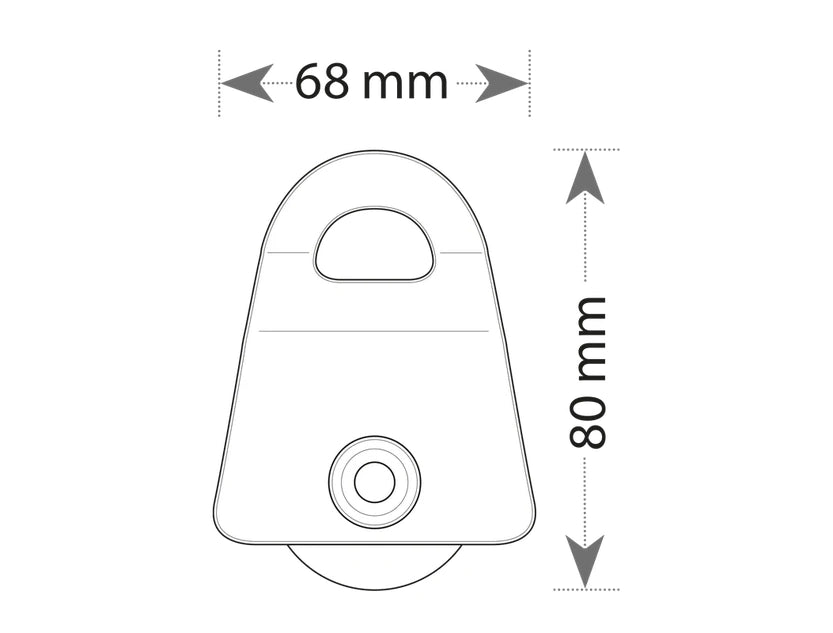

• Dimensions: 80 x 68mm
• Maximum rope diameter : 11 mm

• Breaking load (MBS): 10 kN x 2 = 20 kN
• Material: aluminum alloy, stainless steel
• Certification: EN 12278:2007, CE
• Origin: Taiwan
