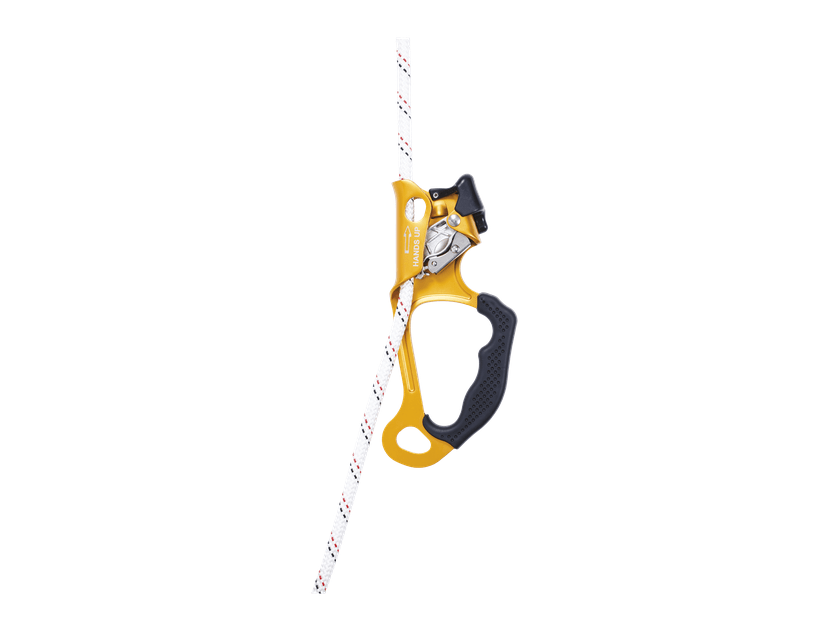

BEAL HANDS UP

BEAL HANDS UP

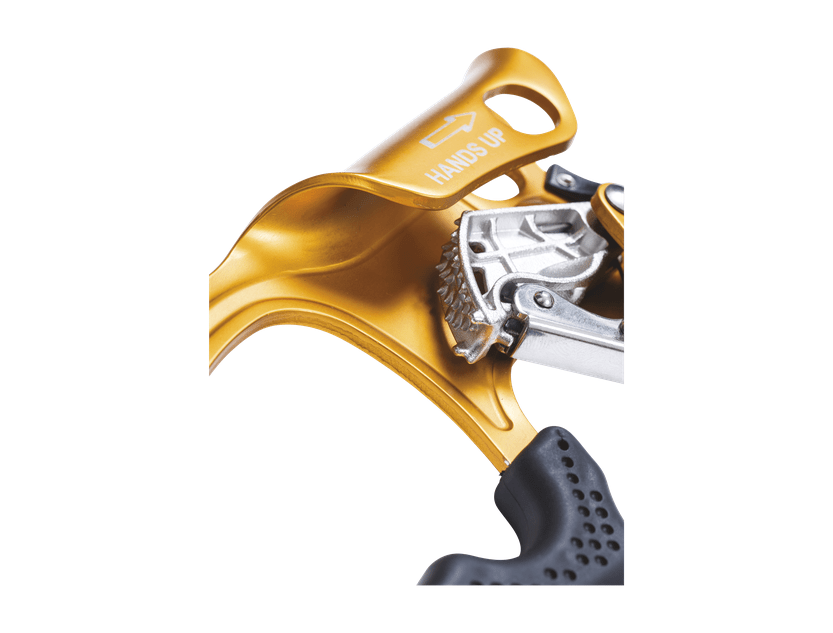

• A fall arrester that uses cam extrusion braking. The cam adopts a non-traditional tooth structure, which reduces wear and tear on the rope and reduces the impact force of the fall.
• The locking/unlocking mode can be switched to fix the catcher at any point on the rope, or it can move with the working position.

• Can be fixed at any position on the rope.
• Can quickly brake in the event of a fall.
• It can follow the movement of workers when ascending and descending.
• It is recommended to use the special lanyard Mobile Lanyard to make the movement on the rope smoother.
• The special idN exclusive number facilitates clear management of equipment usage.
• Certification: EN 567:2013 (for use in mountaineering and rock climbing, suitable for ropes 8-13mm), EN 12841:2006 Type B (for use during rope operations, suitable for rope diameters 10-13mm), CE.

In order to protect the rights and interests of consumers, this type of technical equipment is related to safety issues and no returns or exchanges will be accepted (except for defects in the product itself). Please confirm before ordering!

Specification

• BEAL HANDS UP ascender specifications
• Weight: 265g

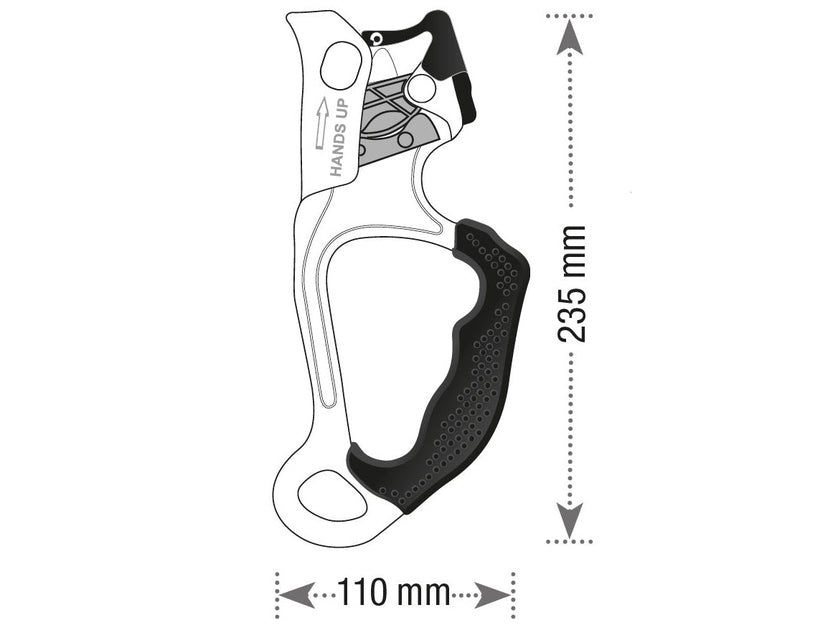

• Dimensions: 235 x 110mm
• Applicable rope diameter : 8-13 mm
• Material: aluminum alloy, stainless steel, plastic
• Certification: EN 567:2013 (used in mountaineering and rock climbing, suitable for ropes 8-13mm), EN 12841:2006 Type B (used during rope operations, suitable for rope diameters 10-13 mm 100 kg), CE
• Origin: Taiwan

download

• BEAL HANDS UP ascender original manual
