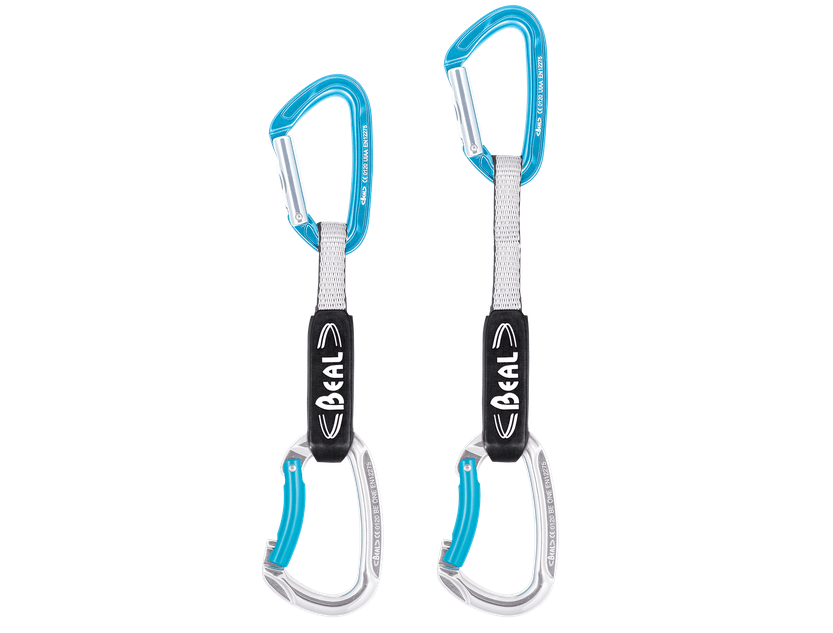

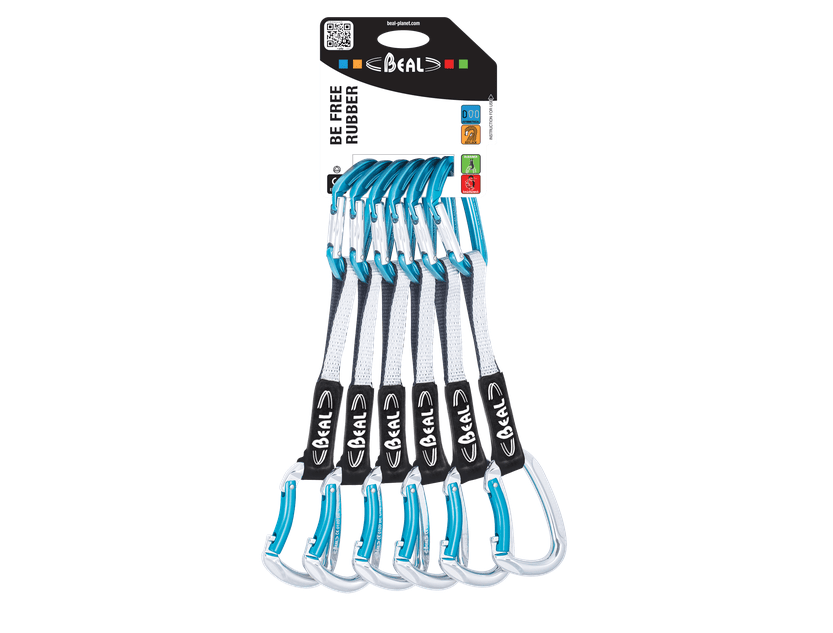

BEAL BE FREE RUBBER quick buckle set of 6 pieces

BEAL BE FREE RUBBER quick buckle set of 6 pieces

• Utilizing two different types of shackles and using their two different characteristics, this quick release is suitable for use in sport climbing.
• The BE TOP hook and loop on the top, D-shaped design, is not easy to flip over, and the lightweight body effectively reduces weight without reducing strength.

• The BE ONE shackle below is designed as an arc shape with a diameter of 12mm where it contacts the rope surface, which improves the contact surface, reduces the bending of the rope, and reduces wear caused by repeated falls.

• This quick buckle set is equipped with a rubber retainer (RUBBER) to prevent the rope shackle from rotating and protect the quick buckle from wear.
• The special idN exclusive number and BCC color code facilitate clear management of equipment usage.
• Certification: EN 12275:2013 Type B, EN 566:2017, UIAA, CE .

In order to protect the rights and interests of consumers, this type of technical equipment is related to safety issues and no returns or exchanges will be accepted (except for defects in the product itself). Please confirm before ordering!

Specification

• BEAL BE FREE RUBBER quick buckle set 12cm 6 pieces specifications
• Weight: 102 g (single)
• Double-lug quick-buckle rope loop strength: 22 kN
• Double ear quick buckle rope loop length: 12cm
• Material: aluminum alloy, nylon
• Certification: EN 12275:2013 Type B, EN 566:2017, UIAA, CE
• Origin: Taiwan

• BEAL BE FREE RUBBER quick buckle set 17cm 6 pieces specifications
• Weight: 107 g (single)
• Double-lug quick-buckle rope loop strength: 22 kN
• Double ear quick buckle rope loop length: 17cm
• Material: aluminum alloy, nylon
• Certification: EN 12275:2013 Type B, EN 566:2017, UIAA, CE
• Origin: Taiwan

• BEAL BE TOP Lockless Shackle Specifications
• Weight: 34.3g
• Dimensions: 89 x 50 mm
• Maximum hook and loop opening: 15 mm
• Strength: main shaft 22 kN, short shaft 7 kN, open gate 7 kN
• Material: aluminum alloy
• Certification: EN 12275:2013 Type B, CE
• Origin: Taiwan

• BEAL BE ONE Lockless Shackle Specifications
• Weight: 52.2 g
• Dimensions: 98 x 58 mm
• Maximum hook and loop opening: 28 mm
• Strength: main shaft 22 kN, short shaft 7 kN, open gate 7 kN
• Material: aluminum alloy
• Certification: EN 12275:2013 Type B, CE
• Origin: Taiwan

download

• BEAL BE FREE RUBBER quick buckle set 12cm 6 pieces original manual
