BEAL TRANSF'AIR FIXE B Fixed Pulley (Ball Bearing)

BEAL TRANSF'AIR FIXE B Fixed Pulley (Ball Bearing)

Regular price NT$1,800
Regular price Sale price NT$1,800
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:BBMPFB

Quantity
View full details

Product details

  • The Beal TRANSF'AIR FIXE B is a highly efficient and compact fixed-side pulley, specifically designed for load deviation, hauling systems, and mechanical advantage setups.
  • Fixed Side Plate Design: The simple and robust side plate design allows for quick and easy rope installation, enhancing convenience during use.
  • BALL BEARINGS: The pulley is equipped with a high-performance ball bearing system inside, ensuring an efficiency of up to 86%, significantly reducing physical effort during hauling, minimizing friction, and ensuring smooth operation.
  • Reinforced Structural Design: Constructed with an aluminum alloy body and equipped with a stainless steel axle and washers, enhancing the equipment's durability in high-intensity environments.
  • Unique idN Number: Each unit features a unique code for easy and clear management of equipment usage status.
  • Certification: EN 12278:2007, CE.

Because this type of technical equipment is safety-critical, please confirm it suits your needs before ordering. Returns and exchanges follow our Refund Policy.

Specifications

  • Weight: 120 g

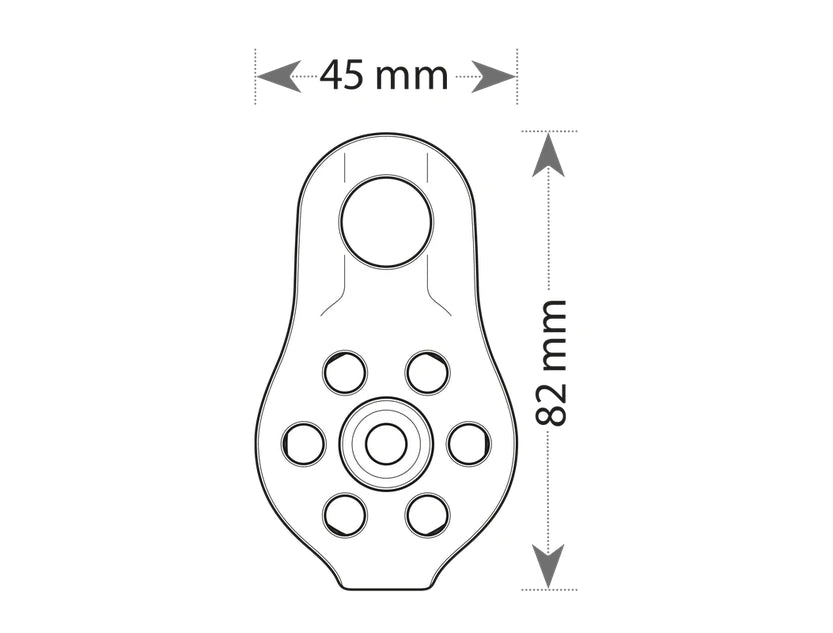

  • Dimensions: 82 x 45 mm
  • Sheave Diameter: 26.2 mm
  • Max Rope Diameter: 13 mm
  • Minimum Breaking Strength (MBS): 22 kN
  • Working Load Limit (WLL): 5 kN (2x2.5 kN)
  • Efficiency: 86%
  • Material: Aluminum alloy, stainless steel
  • Certification: EN 12278:2007, CE
  • Origin: Taiwan

BEAL TRANSF'AIR FIXE B Fixed Pulley (Ball Bearing) Product Description Image 1

BEAL TRANSF'AIR FIXE B Fixed Pulley (Ball Bearing) Product Description Image 2
