- The BEAL TRANSF'AIR 1B is the high-performance version in the TRANSF'AIR series. The biggest difference from the standard version is its internal "ball bearings," which greatly improve operational efficiency, making it particularly suitable for high-frequency use or tasks requiring extreme effort reduction.
- High-Efficiency Power Transmission: Features a high-quality sealed ball bearing core, providing up to 93% operational efficiency. Compared to standard bushing pulleys, it significantly reduces physical exertion, making it ideal for long-distance hauling and high-frequency operations.
- Flexible Swivel Side Plate Design: The side plates can be rotated open, allowing for ropes to be installed or removed at any time without detaching the device from the system, greatly enhancing flexibility and efficiency during on-site assembly.
- Excellent Structural Strength: Offers extreme reliability with a minimum breaking strength (MBS) of 30 kN (approximately 3000 kg). It maintains structural integrity even under extreme loads, ensuring absolute safety.
- Durable and Corrosion-Resistant: Equipped with a stainless steel axle, enhancing overall wear resistance and environmental corrosion resistance, ensuring a long service life for the equipment in harsh outdoor environments.
- Wide Rope Diameter Compatibility: The wide rope groove design perfectly accommodates various professional ropes with diameters up to 16 mm.
- Dedicated Number Management: Each pulley is equipped with a unique idN dedicated number, allowing users to track and manage the equipment, ensuring that the status of the equipment during daily use can be clearly recorded and tracked.
- Certifications:EN 12278:2007, CE.
To protect consumer rights, this type of technical equipment involves safety issues and is not eligible for returns or exchanges (except for product defects). Please confirm before ordering!
Specifications
- Weight: 280 g

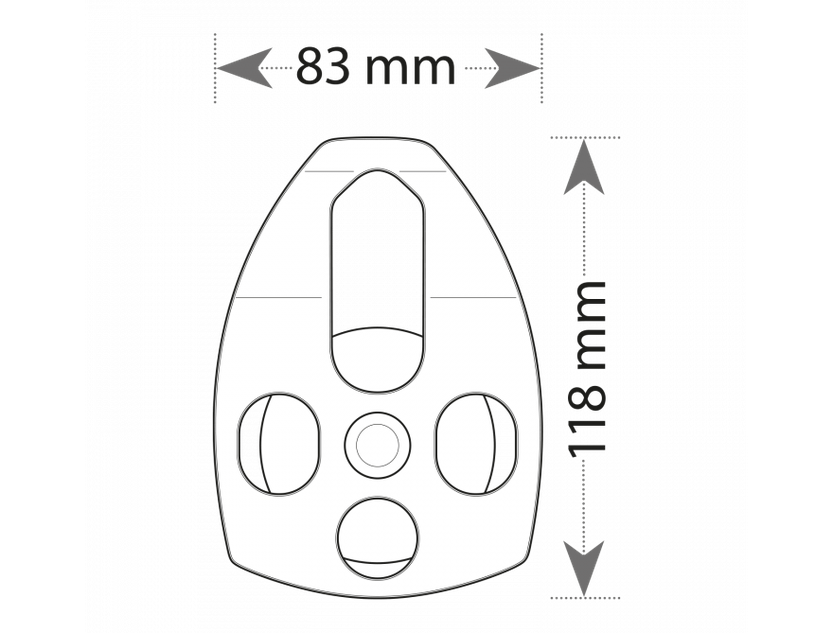

- Dimensions: 118 x 83 mm
- Pulley diameter: 48.7 mm
-
Max rope diameter: 16 mm
- Breaking load (MBS): 30 kN
- Working load (WLL): 5 kN (2x2.5 kN)
- Operational efficiency: 93%
- Material: Aluminum alloy
- Certifications: EN 12278:2007, CE
- Origin: Taiwan
