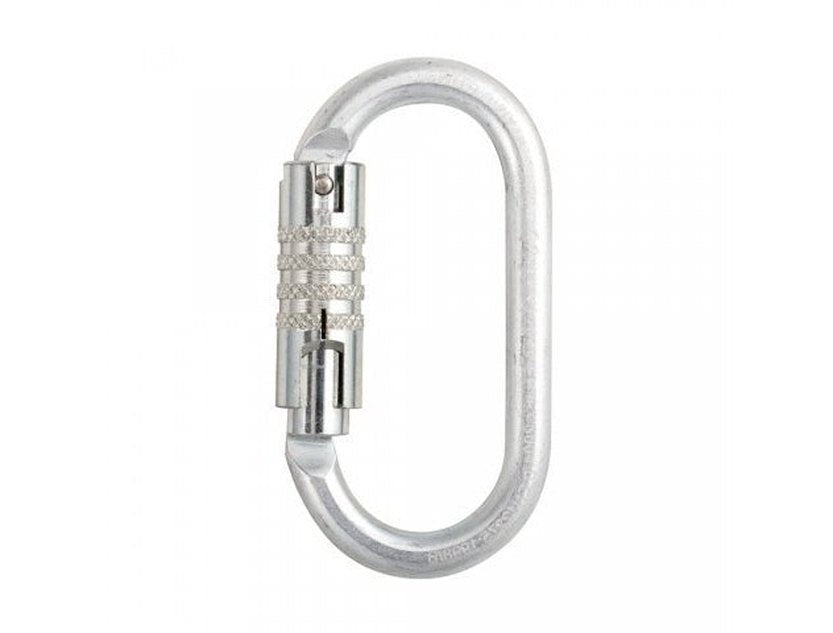

BEAL O'SMITH 3-MATIC steel O-shaped three-section self-locking shackle

BEAL O'SMITH 3-MATIC steel O-shaped three-section self-locking shackle

• Steel shackles with high tensile strength, triple action 3-MATIC locking system, and Keylock design prevent malfunctions during operation.

• The O-shaped symmetrical shape is the first choice when the shackle is used as a connector, especially when mounting a pulley, it can evenly distribute the force and load .

• The special idN exclusive number facilitates clear management of equipment usage.
• Certification: EN 12275:2013 Type H, EN 362:2004 Type B, A, T, CE .

In order to protect the rights and interests of consumers, this type of technical equipment is related to safety issues and no returns or exchanges will be accepted (except for defects in the product itself). Please confirm before ordering!

Specification

• BEAL O'SMITH 3-MATIC steel O-shaped three-section automatic locking shackle specifications
• Weight: 198g

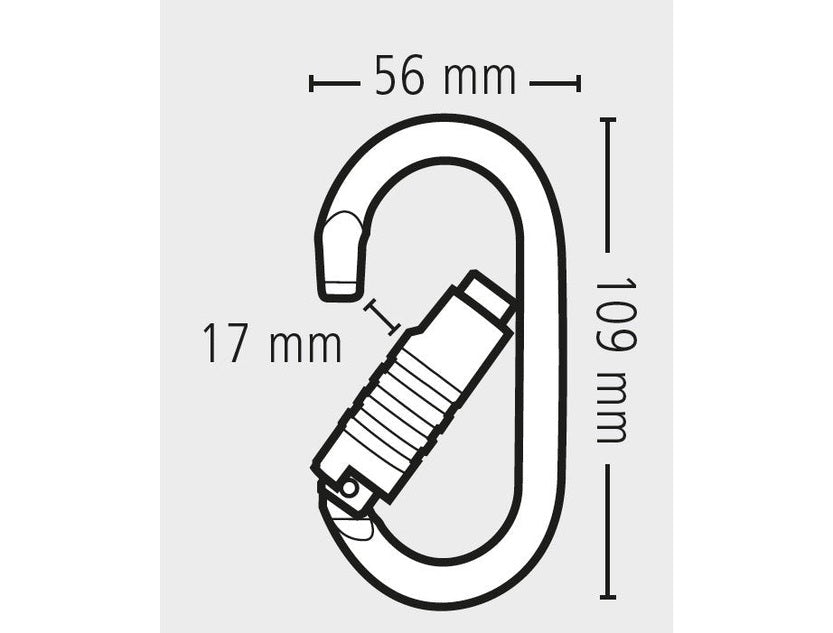

• Dimensions: 109 x 56 mm, gate opening 17 mm
• Strength: main shaft 30 kN, short shaft 16 kN, open gate 8 kN
• Material: steel
• Certification: EN 12275, EN 362:2004 Type B,A,T,CE
• Origin: Taiwan
