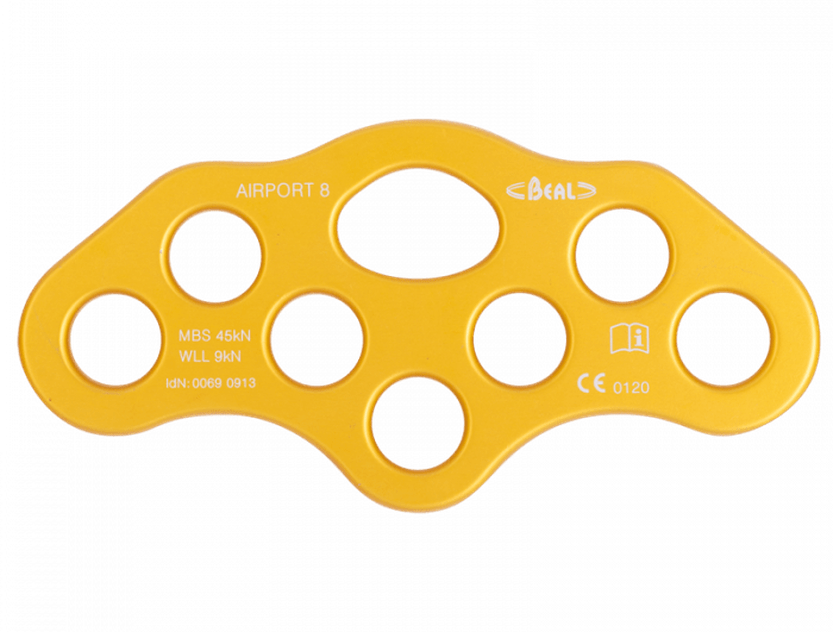

BEAL AIRPORT 8 8-hole belay plate

BEAL AIRPORT 8 8-hole belay plate

NT$2,300
NT$2,300
Sale Sold out
Taxes included. Shipping calculated at checkout.

BBMAP8
View full details

  • The AIRPORT 8 is a multi-point rigging plate designed specifically for large-scale rescue systems and complex high-angle environments. The plate features 1 main anchor hole and 7 rigging holes, allowing for an organized arrangement of connection points on-site and effectively solving the problem of overlapping systems.
  • Ultimate System Organization: Provides up to 8 connection points (1 main hole + 7 rigging holes), clearly separating main lines, backup lines, rescue stretcher hauling systems, and personal belays, significantly enhancing operational safety.
  • Obstruction-Free Rotation Design: 20mm rigging hole diameters allow most locking carabiners to rotate and flip smoothly, ensuring that no dangerous lateral stress occurs due to jamming under load.
  • High-Strength, Lightweight Performance: Features a 45 kN (approx. 4500 kg) breaking strength and a 9 kN working load limit, capable of withstanding professional-grade high-load challenges while remaining compact and portable.
  • Smooth Beveled Edge Craftsmanship: Edges are polished to accommodate carabiners of various diameters and reduce wear, making rope system configurations smoother.
  • Dedicated idN Coding: Facilitates equipment usage tracking, ensuring precise and efficient gear management.
  • Certification: CE 0120, UIAA 130:2021.

To protect consumer rights, as this technical equipment involves safety concerns, returns and exchanges will not be accepted (except in the case of manufacturing defects). Please confirm your requirements before ordering!

Specifications

  • Weight: 188 g

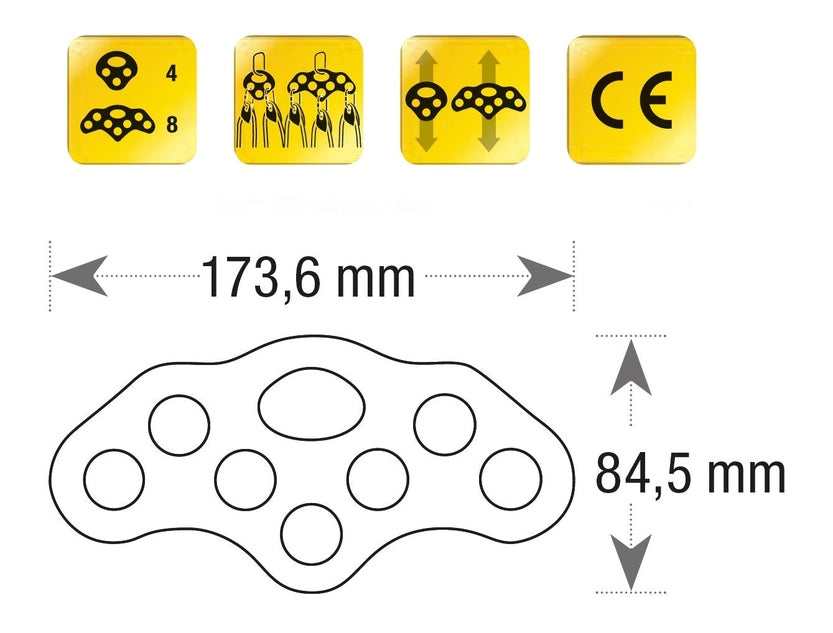

  • Dimensions: 173.6 x 84.5 mm
  • Hole Diameter: Main hole - 23.5 mm, Rigging holes - 20 mm
  • Working Load Limit (WLL): 9 kN
  • Minimum Breaking Strength (MBS): 45 kN
  • Material: Aluminum alloy
  • Certification: CE 0120, UIAA 130:2021
  • Origin: Taiwan

BEAL AIRPORT 8 8-hole Rigging Plate Product Description Image 1

BEAL

Beal 被譽為是世界上攀登及安全繩索首屈一指的製造商，由於對繩索製作工藝上無止境的追求，提升使用者的安全性，持續在業界保持領先的地位。目前銷售到全世界40個不同國家，每年繩索的銷售量達到800萬公尺。

不僅通過ISO9001認證，確保產品的品質，Beal 更將營業額的5%用於產品研發，製作更耐磨耐用的產品，並擁有多項專利技術，包括獨一無二的防水技術（率先通過UIAA 繩索防水認證）、安全的顏色辨識系統等等，提供更多的安全保障，更長的使用壽命。另外，也提撥5%用於贊助登山及攀岩高手，世界上大部分登山攀岩好手都是Beal 的成員。Beal的靜力繩已經獲得CE認證，但是Beal同樣活躍於安全及工業繩索市場!
